3Dconnexion

SpaceMouse® – Specifically designed to work in CAD applications

Experience Now

Overview

SpaceMouse®

Improving ergonomics and efficiency at your CAD workplace. Study proves the ergonomic benefits. When a mouse is used intensively with repetitive patterns of movement, this can result in pain and functional impairments, also known as RSI syndrome or ‘mouse arm’. Using a 3D mouse can prevent these symptoms, while making your CAD workflow considerably more efficient and healthier.

Better Ergonomics and Efficiency at Your CAD Workplace

The 3D Mouse Alleviates One – Sided Wrist Strain

A ‘normal’ computer mouse is an important part of any CAD workstation. It is light, compact and easy to operate. However, it poses one major disadvantage from an ergonomic point of view, in that you always have to operate it using the same hand. When a mouse is used intensively with repetitive patterns of movement, this can result in pain and functional impairments, also known as RSI syndrome or ‘mouse arm’.

Using a 3D mouse can prevent these symptoms, while making your CAD workflow considerably more efficient and healthier. This was proven by an experiment carried out by the Fraunhofer Institute for Industrial Engineering (IAO)

SpaceMouse® benefits you need to know:

  • 28.6% fewer finger movements per hour – You always use the same finger to click or operate the mouse wheel when using a conventional mouse. A 3D mouse takes on the tasks that you previously carried out with your dominant hand. The strain is spread across both hands, rather than just being focused on one. This reduces finger movements by 28.6%. Strain on your hand musculature falls from a dangerous level of over 1,800 movements per hour to an acceptable level of 1,336 movements per hour.
  • Ergonomically healthy sitting posture – Working with two hands – with a 3D mouse in your left hand and a conventional mouse in your right hand – helps you to maintain an upright posture while seated. Both arms lie on the desk in parallel. The ergonomically shaped hand rest of the 3D mouse also ensures that your wrist remains straight. After a short period of getting used to this way of working, your hand will enjoy a comfortable and cramp-free position. This prevents you from having to overly contort your hand or arm.
  • Up to 28% higher productivity – Excessive strain on one side of the body is a symptom suffered by many CAD users, who put one-sided stress on their hand and arm musculature by carrying out repetitive movements. Using a 3D mouse greatly reduces the need to switch between your mouse and keyboard. Freely configurable shortcuts and keyboard switches relieve your hand and arm, while also increasing your performance by up to 28%*. The tactile shape of the buttons makes the mouse intuitive to use, with minimum finger strain. *in the laboratory study, the amount of time needed to complete a random task was reduced by 28 per cent (from 96 minutes to 68 minutes per task) when using the 3D mouse.
  • Intuitive and user-friendly – 3D navigation using a SpaceMouse® Enterprise is an outstanding experience, as it facilitates particularly intuitive and user-friendly workflows in professional environments. This was confirmed in the Fraunhofer study, which determined a SUS value* of 86.3 for the 3D mouse. A normal mouse and keyboard setup merely offers a satisfactory degree of user-friendliness (SUS value: 62.3). *The System Usability Scale (SUS) is a ‘quick and dirty’ method of measuring the usability of an application. The SUS scale goes from 0 to 100. Solutions with a score of 68 and above are considered to have at least good usability.

CadMouse

Specifically designed to work in CAD  applications.

The CadMouse family is the industry-acclaimed purpose-built line specifically suited for design and engineering professionals. Featuring advanced ergonomics and precise calibration, it offers exceptional comfort and silent operation. It is continually improved with research-based ergonomic and technological refinements, providing ideal sensitivity, reactivity, and precise control for an enhanced CAD experience.

Products

SpaceMouse® Enterprise Kit 2

The Ultimate CAD Solution

Highlights:

When you pair a 3Dconnexion SpaceMouse® Enterprise with a CadMouse and CadMouse Pad the whole is most definitely greater than the sum of its parts. We call this synergy Two Handed Power – the SpaceMouse® Enterprise smoothly positions your object or view, while the CadMouse selects and creates with ease. It’s a natural and comfortable work style that can’t be matched.
Included in the SpaceMouse® Enterprise Kit
 SpaceMouse® Enterprise
 CadMouse
 CadMouse Pad
 Twin-port USB hub

Technical Specification – SpaceMouse® Enterprise

3Dconnexion six-degrees-of-freedom (6DoF) sensor
12 Intelligent Function Keys
Color LCD for visualizing Function Key assignment
Keyboard Modifiers (Control, Alt, Shift, Escape, Enter, Space, Delete, Tab)
Full-size, soft-coated hand rest
31 programmable keys in total
Dimensions (LxWxH): 249 x 154 x 58mm / 9.8″ x 6.1″ x 2.3″
Weight: 800g / 1.76 lbs
3+1 warranty (three years as standard plus additional one year with product registration)
QuickView Keys
Top / Bottom
Left / Right
Front / Back
90° Rotation Clockwise / Counter Clockwise
ISO1 / ISO2
Rotation Toggle
3 Custom View Keys

Technical Specification – CadMouse

7 buttons total (including dedicated Middle Mouse Button)
8200dpi / 1000Hz laser sensor
QuickZoom
Smart Scroll wheel
Gesture / radial menu button
PTFE feet
2m braided USB cable
Dimensions (LxWxH): 128mm x 80mm x 44mm / 5” x 3.15” x 1.7”
Weight: 130g / 0.29lb
2 year warranty: www.3dconnexion.com/warranty

Technical Specification – CadMouse Pad

Optimized surface coating
Micro-textured finish
Non-slip silicone base
2 year warranty



Get In Touch

SpaceMouse® Enterprise

Built For Top Engineering Performance

Highlights:

At the top, there is no room for second best. The world’s premier firms demand the highest level of performance from their engineering teams. There are no excuses for missed opportunities or subpar output; there are only results. Enter the 3Dconnexion SpaceMouse® Enterprise. Welcome to the new standard in engineering performance!

Technical Specification

3Dconnexion six-degrees-of-freedom (6DoF) sensor
12 Intelligent Function Keys
Color LCD for visualizing Function Key assignment
Keyboard Modifiers (Control, Alt, Shift, Escape, Enter, Space, Delete, Tab)
Full-size, soft-coated hand rest
31 programmable keys in total
Dimensions (LxWxH): 249 x 154 x 58mm / 9.8″ x 6.1″ x 2.3″
Weight: 800g / 1.76 lbs
3+1 warranty (three years as standard plus additional one year with product registration)
QuickView Keys
Top / Bottom
Left / Right
Front / Back
90° Rotation Clockwise / Counter Clockwise
ISO1 / ISO2
Rotation Toggle
3 Custom View Keys

Supported Operating Systems

Microsoft ® Windows 8, 7 and Vista.

Certitifications and Registrations

CE FCC, KC, RCM, BSMI, RoHS-EU, RoHS-China, WEEE, Bell And Vision, Japanese Recycling Law.

Get In Touch

SpaceMouse® Pro Wireless

The Engineering Standard For Mobile Workspaces

Highlights:

The modern CAD workstation is increasingly mobile. SpaceMouse® Pro Wireless offers CAD professionals advanced ergonomics, the power and customization of SpaceMouse® Pro in a format purpose-built for engineers, architects or designers on the move. With a small, high performance universal receiver, USB hub and stylish travel case, SpaceMouse® Pro Wireless goes wherever you need to be.

Technical Specification

3Dconnexion Six-Degrees-of-Freedom (6DoF) sensor
Wireless and cable connectivity
4 Application Command Buttons
4 keyboard modifiers (Ctrl, Alt, Shift, Esc)
4 QuickView Keys
Rotation Toggle Key
Menu Key and Fit Key
Full-size, soft-coated hand rest
15 total programmable keys
On-screen display

Packaged Contents

3Dconnexion SpaceMouse® Pro Wireless
Carry case
3Dconnexion Universal Receiver
Twin-port USB hub
Micro USB cable 1.5 m
Micro USB cable 0.5 m

Battery

Battery life: 2 months*
Rechargeable lithium polymer battery with 2000 mAh

Warranty

3-years limited hardware warranty

Get In Touch

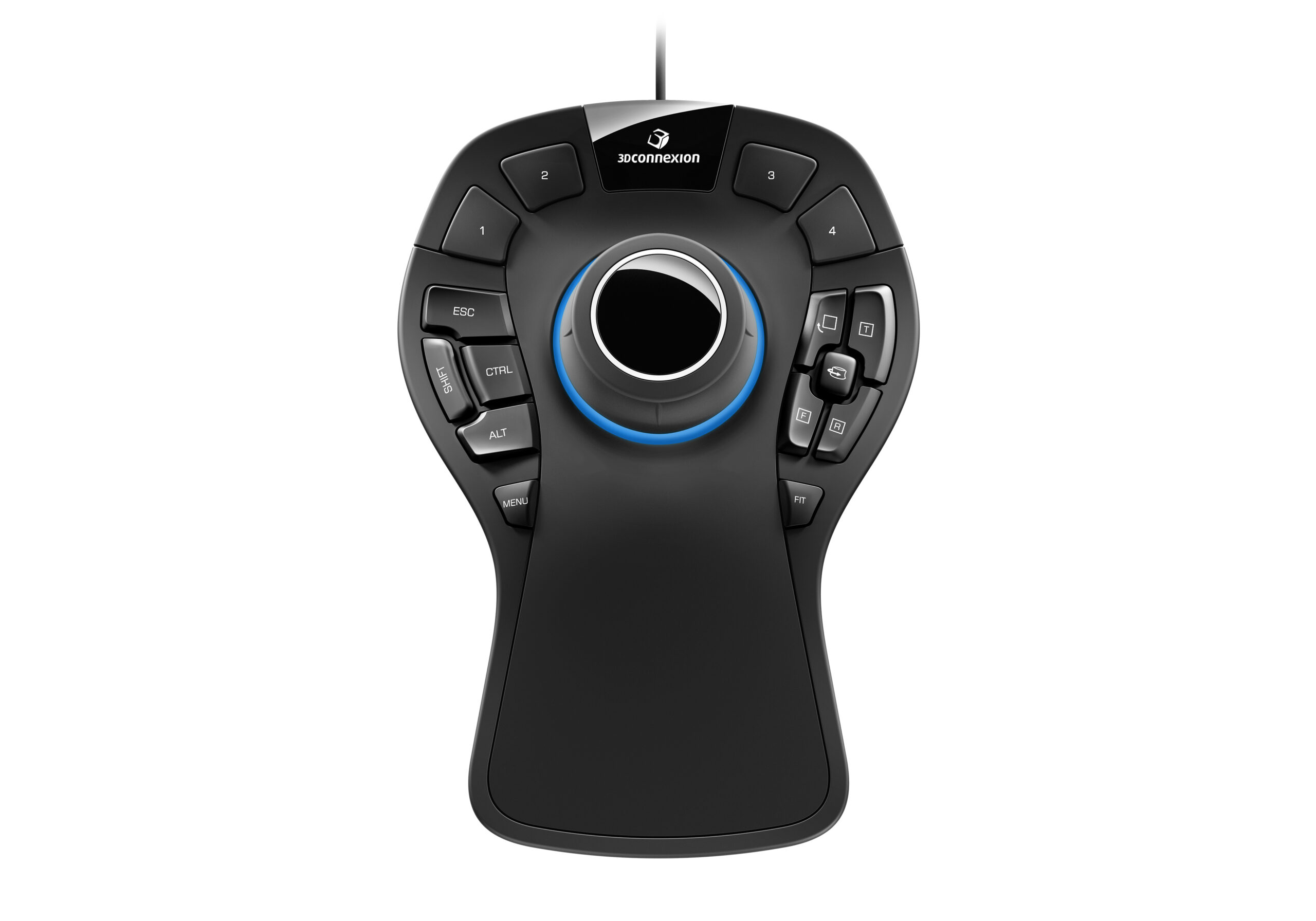

SpaceMouse® Pro

Superior 3D Navigation for Professionals

Highlights:

SpaceMouse® Pro is the optimal tool for engineers, designers and architects worldwide to create 3D designs across an increasing variety of industries. Delivering intuitive, effortless, precision 3D navigation in CAD applications, the SpaceMouse® Pro experience cannot be reproduced with a standard mouse and keyboard.

Technical Specification

3Dconnexion six-degrees-of-freedom (6Dof) sensor
Full-size, soft-coated hand rest
4 Application Command Buttons
4 keyboard modifiers (Ctrl, Alt, Shift, Esc)
4 QuickView Keys
Rotation Toggle Key
Menu Key and Fit Key
15 programmable keys in total
On-screen display

Dimensions & Weight

Length: 204 mm / 8”
Width: 142 mm / 5.6”
Height: 58 mm / 2.3”
Weight: 665 g / 1.47 lb / 23.46 oz

Warranty

3-years limited hardware warranty





Get In Touch

SpaceMouse® Wireless Kit2

The Mobile CAD Solution

Highlights:

All You Need for an Efficient, Mobile Engineering Performance.
You don’t always work in the same place and your devices need to be designed to meet your needs as a mobile engineer. With the SpaceMouse® Wireless Kit 2 we hit those requirements and offer you durable, wireless devices for a two-handed approach to CAD. This makes engineering more efficient and comfortable.

Package Contents

SpaceMouse® Wireless with carry case
CadMouse Compact Wireless with carry case
CadMouse Pad Compact
3Dconnexion Universal Receiver
Micro-USB cable

Technical Specification – SpaceMouse® Wireless with carry case

3Dconnexion six-degrees-of-freedom (6Dof) sensor
2 programmable buttons

Technical Specification – CadMouse Pad Compact

Optimized surface coating
Micro-textured finish
Non-slip silicone base
2-year warranty

Technical Specification – Universal Receiver

2.4 GHz for realtime connection
Support for five 3Dconnexion wireless devices
Small size



Get In Touch

SpaceMouse® Wireless

Advanced 3D Navigation Anywhere

Highlights:

The modern engineering workspace has become more diverse, flexible and mobile. Whether you are reviewing 3D drawings with colleagues or presenting design ideas in a meeting room, the SpaceMouse® Wireless offers you the functionality to navigate efficiently in 3D applications anywhere.

Packaged Contents

3Dconnexion  SpaceMouse® Wireless
Carry case
3Dconnexion Universal Receiver
USB cable 1.5 m

Technical Specification

3Dconnexion six-degrees-of-freedom (6Dof) sensor
2 programmable buttons

Wireless & Connectivity

3Dconnexion 2,4GHz wireless technology
USB Cable

Battery

Battery life: 1 month*
Rechargeable Lithium-ion- polymer

Warranty

2-years limited hardware warranty

Get In Touch

SpaceMouse® Compact

Designed for Advanced 3D Navigation

Highlights:

The SpaceMouse® Compact was developed to deliver an intuitive, effortless and precise 3D navigation in CAD applications that cannot be experienced by using a standard mouse and keyboard. It is the ideal tool for modern engineers, architects and designers to review 3D designs and explore 3D spaces.

Technical Specification

3Dconnexion six-degrees-of-freedom (6Dof) sensor
2 programmable buttons

Package Contents

3Dconnexion SpaceMouse® Compact

Warranty

2-years limited hardware warranty





Get In Touch

CadMouse Pro Wireless

The Precision Ergonomic Mouse For Cad Professionals

Highlights:

CadMouse Pro Wireless is the full-size mouse designed specifically for the modern CAD professional. Offering superior ergonomics, a dedicated middle mouse button, high resolution optical sensor, up to three-months use between charges*, and 50 million clicks-worth of durability for the daily use CAD specialist, CadMouse Pro Wireless is the mainstay of any CAD toolkit.

Package Contents

3Dconnexion CadMouse Pro Wireless
3Dconnexion Universal Receiver
Carry Case
Braided micro USB cable 1.5 m

Technical Specification

7 buttons
Ergonomic shape for comfortable CAD sessions
Specially developed PTFE feet
Smart Mouse Wheel 2
QuickZoom
Customizable radial menu

Sensor

High resolution optical sensor: 7.200 DPI
Adaptive polling rates: 90Hz (Bluetooth),
125Hz (Universal Receiver) and 1.000Hz (cabled)

Wireless & Connectivity

3Dconnexion 2.4GHz Wireless Technology
Bluetooth Low Energy
Micro USB Cable

Battery

Battery life: 3 months*
Rechargeable lithium polymer with 1.100 mAh
Charging time: 2 minutes for one day of operation
(7 hours for a full recharge)

Warranty

3-years limited hardware warranty



Get In Touch

CadMouse Pro Wireless Left

Professional Ergonomics and Precision in a Left-Side Body

Highlights:

CadMouse Pro Wireless Left is the full-size, left-side solution for CAD users who prefer a left-handed mouse, or require a transition to reduce or prevent chronic Repetitive Strain Injury (RSI). Offering 3Dconnexion’s precision technology and advanced ergonomics in a left-handed body, CadMouse Pro Wireless Left is an ideal daily-use mouse for CAD professionals.

Package Contents

3Dconnexion CadMouse Pro Wireless Left
3Dconnexion Universal Receiver
Carry Case
Braided micro USB cable 1.5 m

Technical Specification

7 buttons
Ergonomic shape for comfortable CAD sessions
Specially developed PTFE feet
Smart Mouse Wheel 2
QuickZoom
Customizable radial menu

Sensor

High resolution optical sensor: 7.200 DPI
Adaptive polling rates: 90Hz (Bluetooth),
125Hz (Universal Receiver) and 1.000Hz (cabled)

Wireless & Connectivity

3Dconnexion 2.4GHz Wireless Technology
Bluetooth Low Energy
Micro USB Cable

Battery

Battery life: 3 months*
Rechargeable lithium polymer with 1.100 mAh
Charging time: 2 minutes for one day of operation
(7 hours for a full recharge)

Warranty

3-years limited hardware warranty

Get In Touch

CadMouse Pro

The ultimate ergonomic mouse for CAD professionals

Highlights:

CadMouse Pro is the industry-acclaimed purpose-built mouse specifically suited for design and engineering professionals. Featuring superior ergonomics, a dedicated middle mouse button and a high resolution optical sensor, the full-size wired mouse offers exceptional comfort and precision.

Technical Specification

7 buttons
Full-size ergonomic design
High resolution sensor
Smart Mouse Wheel 2
QuickZoom
Specially developed PTFE feet
Customizable radial menu

Buttons

Dedicated middle mouse button
Main buttons with 50 million clicks mechanical life
5 buttons programmable

Sensor

High resolution optical sensor: 7,200 DPI
Polling rate: 1.000Hz

Package Contents

3Dconnexion CadMouse Pro

Warranty

3-year limited hardware warranty



Get In Touch

CadMouse Compact Wireless

Developed for top-level wireless performance in a compact body

Highlights:

Lightweight and agile, it is especially suited for design and engineering professionals who prefer to use a compact form factor and want devices that are  suitable for mobile workstyles. Featuring advanced ergonomics, superior comfort, and a redesigned mouse wheel, the wireless mouse guarantees ideal sensitivity, reactivity, and precise control which provide a seamless professional experience.

Package Contents

3Dconnexion CadMouse Compact Wireless
3Dconnexion Universal Receiver
Carry Case
Braided micro USB cable 1.5 m

Technical Specification

7 buttons
Ergonomic shape for comfortable CAD sessions
Specially developed PTFE feet
Smart Mouse Wheel 2
QuickZoom
Customizable radial menu
Lightweight and durable carry case

Sensor

High resolution optical sensor: 7.200 DPI
Adaptive polling rates: 90Hz (Bluetooth),
125Hz (Universal Receiver) and 1.000Hz (cabled)

Wireless & Connectivity

3Dconnexion 2.4GHz Wireless Technology
Bluetooth Low Energy
Micro USB Cable

Battery

Battery life: 3 months*
Rechargeable lithium -ion-polymer
Charging time: 2 minutes for one day of operation
(7 hours for a full recharge)

Warranty

3-years limited hardware warranty



Get In Touch

CadMouse Compact

High-Caliber Performance in a compact form factor

Highlights:

The CadMouse Compact is the ultimate wired mouse specifically suited for design and engineering professionals who prefer to use a compact form factor for their hand size and grip type. Demonstrating our refined precision technology in a compact body, it is ideal for those who frequently switch environments, requiring faster and more agile movement.

Package Contents

3Dconnexion CadMouse  Compact

Technical Specification

7 buttons (5 programmable)
Compact ergonomic shape with dedicated middle mouse button
High resolution sensor
Smart Mouse Wheel 2
QuickZoom
Specially developed PTFE feet
Customizable radial menu

Buttons

Dedicated middle mouse button
Main buttons with 50 million clicks mechanical life
5 buttons programmable

Sensor

High resolution optical sensor: 7.200 DPI
Polling rates: 1.000Hz

Warranty

2-years limited hardware warranty

Get In Touch

CadMouse Pad

The best experience for your workplace

Highlights:

With CadMouse Pad we offer you the perfect extension for precision and smooth movements regardless of your workplace setup. With its low friction surface optimized for our sensors and a three layer construction for stability it is developed to provide you always the best experience.

Technical Specification

Optimized surface coating
Micro-textured finish
Non-slip silicone base
2-year warranty

CadMouse Pad

Width: 350 mm / 13.8″
Length: 250 mm / 9.8″
Approximate Weight: 160 g / 0.35 lb / 5.64 oz

CadMouse Pad Compact

Width: 250 mm / 9.8″
Length: 250 mm / 9.8″
Approximate Weight: 120 g / 0.26 lb / 4.23 oz
